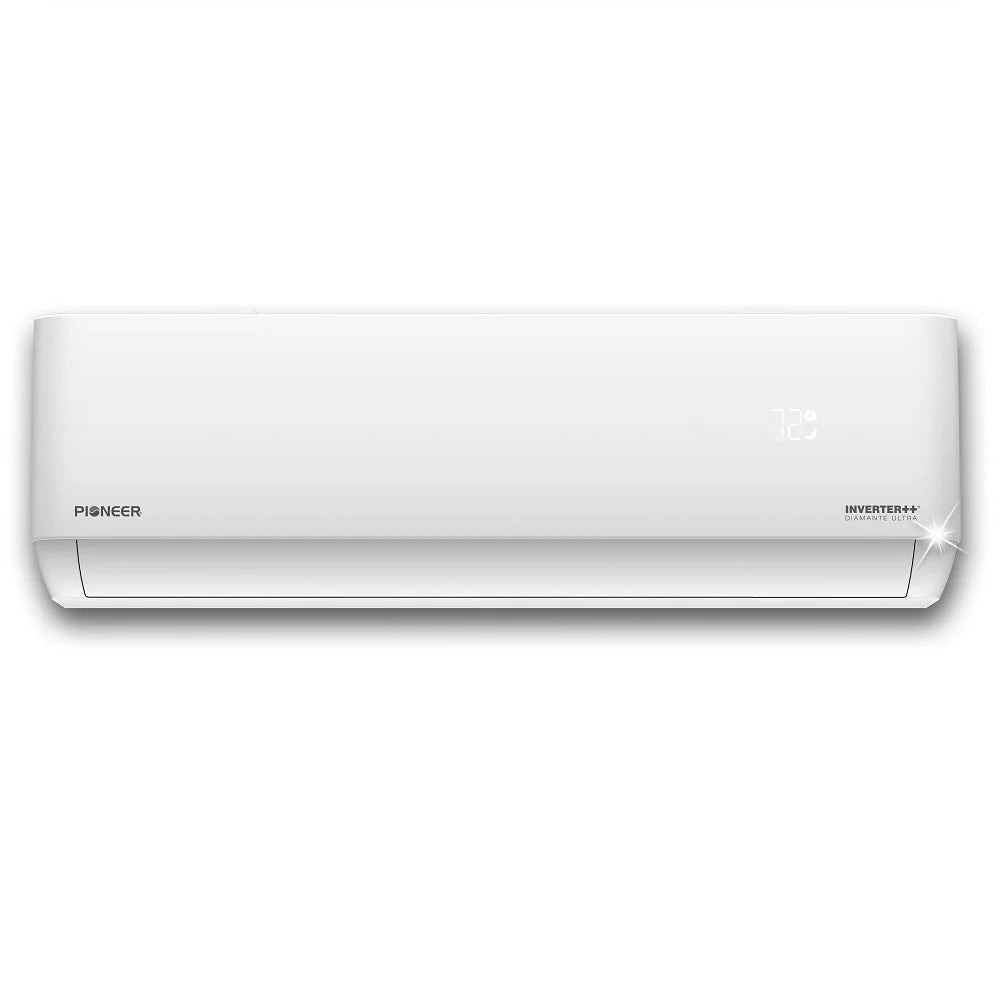

12,000 BTU Ductless Air Handler K3016
Sale price
$39.50
Regular price $299.00
Skip to product information
12,000 BTU Ductless Air Handler K3016
Sale price
$39.50
Regular price $299.00
Shipping calculated at checkout.
An all-new cutting-edge series of Multi-Zone with up to 4 zones per condenser unit, the Diamante Ultra series is Pioneer®'s latest offering that is both highly efficient and highly smart. Available with ultra-quiet high-wall mount air handlers that come Wi-Fi enabled, and dual-directional louvers to ensure air reaches to all four corners of the room. With a highly attractive matte coating, advanced design for simplified installation, and variable kit length options, these heat pump inverters bring next-level sophistication to multi-room climate control.
What's Included
- Indoor Unit - Only the Air Handler is included in this. You need to also purchase a compatible outdoor section in order to have a complete working system
- Wireless Remote Control
- Wi-Fi Module w/ Free App
- 25 Ft. Installation Kit
- Flare Connection Leak Guard Sealer
- Manufacturer Warranty
PRODUCT SPECIFICATIONS:
| Product Dimensions | 36 1/4'W x 7 5/8'D x 12'H |
| Power Supply | 208-230V, 60Hz, 1Ph |
| Cooling Capacity | 12,000 BTU/h |
| Cooling SEER | 23 |
| Heating Capacity | 12,000 BTU/h |
| Heating HSPF | 10 |
| Suitable Area | 300-450 Sq.F |
| Air Flow (Hi/Med/Lo) | 471 / 382 / 294 CFM |
| Sound Level (Hi/Med/Lo/Mute) | 39 / 34 / 29 / 27 dB(A) |
| Weight | 23.1 lbs |
| Warranty | 5 Years Parts |
- Technical Brochure
- Installation and User's Manual
